Bladder Scanner

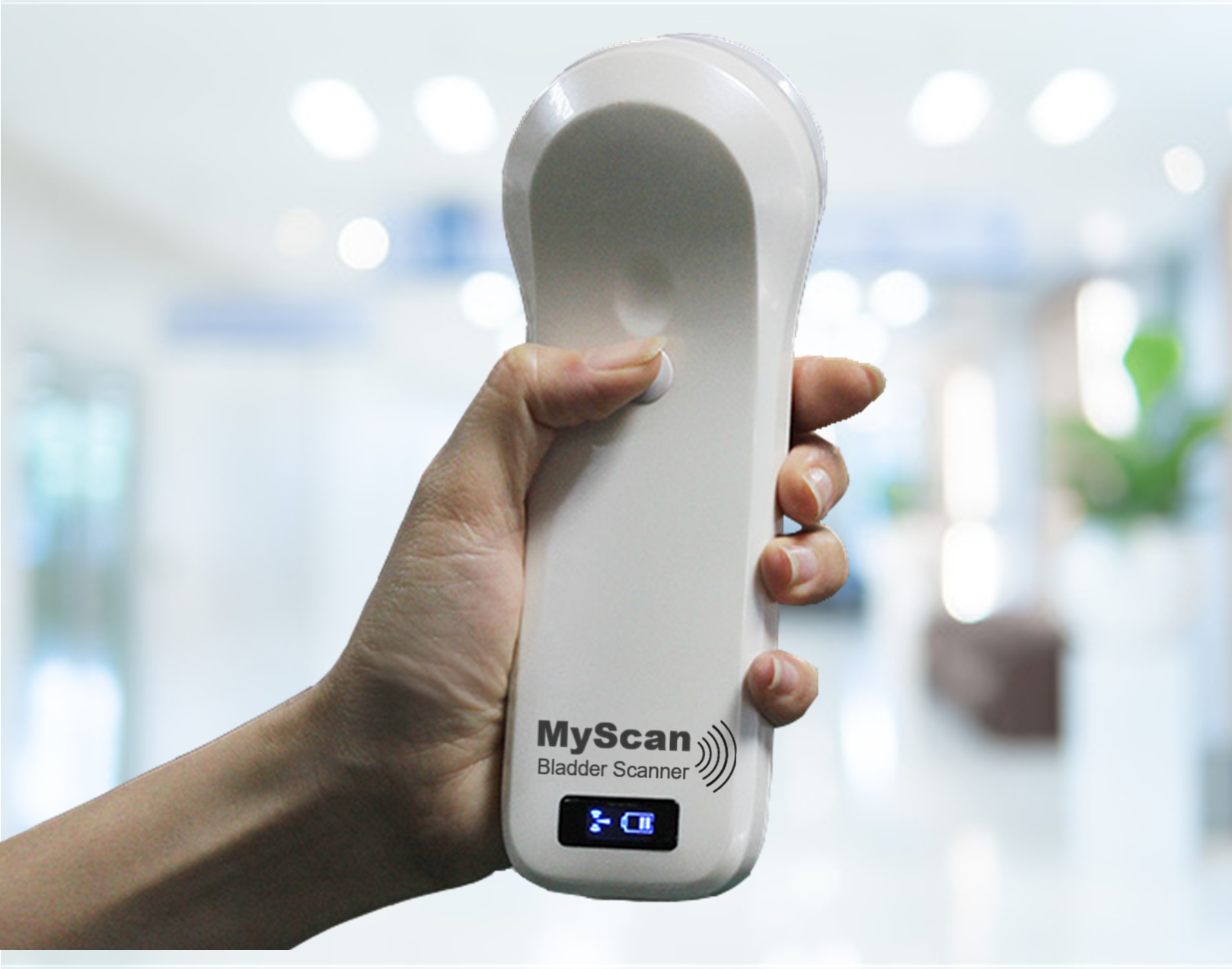

Wireless Bladder Scanner

Fast, accurate, and completely portable bladder volume assessment. The wireless bladder scanner delivers reliable bladder measurements in seconds, helping clinicians make informed decisions without the need for catheterization. Designed for use across hospitals, outpatient clinics, long-term care facilities, and home healthcare settings, it provides a simple and efficient solution for bladder monitoring wherever patient care is delivered.

Using advanced 4D array scanning technology, the system automatically measures bladder volume with high accuracy and intelligently adapts to different bladder shapes and anatomies. Images and measurements are transmitted wirelessly directly to a compatible smartphone or tablet, enabling a streamlined workflow without dedicated consoles or external Wi-Fi networks.

Ideal for post-void residual (PVR) measurement, urinary retention assessment, urinary tract infection (UTI) management, incontinence evaluation, postoperative monitoring, intensive care, and home healthcare, the scanner combines clinical confidence with exceptional ease of use.

View scan images directly on your smartphone or tablet.

  • Incontinence Assessment
  • Urinary Retention
  • Urinary Tract Infection (UTI)
  • Post-Void Residual (PVR)
  • Postoperative Monitoring
  • Intensive Care (ICU)
  • Home Healthcare
Specifications
  • Scan mode: 4D array transducer
  • Compatible with iOS devices
  • Measurement range: 10 mL – 2,000 mL
  • Automatic volume measurement with high accuracy (<5%)
  • Scan time: <2 seconds
  • Image refresh rate (frame rate): 10 frames/second
  • Scan data storage on smartphone or tablet
  • Printing capability via external wireless printer
  • Battery: Integrated rechargeable battery providing up to 200 scans per charge
  • Charging options: Wireless charging and USB charging
  • Dimensions: 18 × 6 × 6 cm (L × W × D)
  • Weight: 420 g

Advantages

  • Wireless image transmission directly from the probe via built-in Wi-Fi
  • No external Wi-Fi network required
  • Simple and intuitive operation
  • Advanced 4D array scanning technology for exceptionally clear image quality
  • Electronic transducer design for extended service life
  • No mechanical scanning components – eliminating noise and vibration
  • New measurement algorithm for improved accuracy, automatically adapting to all bladder shapes and anatomies. No need to specify gender, age, adult/pediatric status, or conditions such as hysterectomy, ensuring consistent and reliable measurements
  • Highly accurate positioning and bladder localization
  • No calibration required
  • Waterproof design for easy cleaning and infection control compliance
